Halstraler Robus LED High Bay / Low Bay

Toevoegen aan selectie
Algemene informatie
Bestelnummer YESSS
3019-6936
Artikelnummer fabrikant
RPD12050DA-23
EAN code
05391370061551
Artikelgroep
Halstraler
Merk
Robus
Serie
LED High Bay / Low Bay
Type
Prismoid

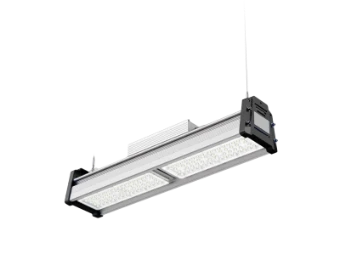

PRISMOID 120W LED Linear High Bay, IP65, 1-10V Dimmable, Silver, PRISMOID 120W LED Linear High Bay, IP65, 1-10V Dimmable, Silver, 590mm
Product omschrijving

* Suitable for use in warehouses, manufacturing plants, garages, workshops & aircraft hangars, retail superstores, gymnasium & sports halls * LED replacement for 250W metal halide fittings * Extruded aluminium housing with PMMA lens providing very high impact rating of IK10, optimal heat dissipation and light distribution * Prewired with 350mm rubber flex * Very high efficacy of 136lm/W * Wide ambient operating temperature range of -25°C to +40°C * Comes with 30x70 degree beam angle lens making it optimal for high racking applications * 90 degree lens available as accessory * Rotating surface mounting brackets also available * Dimmable with most of 1-10V systems * Suitable for switching by PIR, Microwave or Photocell

Product specificaties
Lamptype
LED niet uitwisselbaar
Materiaal behuizing
Aluminium
Kleur behuizing
Aluminium
Spanningstype
AC
Nom. spanning
110 - 240 V
Voorschakelapparaat
LED regeling stroomgestuurd
Voorschakelapparaat inbegrepen
Ja
Dimbaar 0-10 V
Nee
Dimbaar 1-10 V
Ja
Dimbaar DALI
Nee
Dimbaar DMX
Nee
Dimbaar DSI
Nee
Dimbaar faseafsnijding
Nee
Dimbaar faseaansnijding
Nee
Dimbaar met potentiometer (geïntegreerd)
Nee
Dimbaar LineSwitch
Nee
Dimming fabrikantspecifiek
Nee
Dimbaar netspanningsmodulatie
Nee
Dimming programmeerbaar
Nee
Dimbaar RF
Nee
Dimbaar Sine Wave Reduction
Nee
Dimbaar Touch and Dim
Nee
Dimbaar Zigbee
Nee
Dimbaar met push-button
Nee
Stralingshoek
41-80° - Breedstralend
Nom. levensduur L70/B50 bij 25 °C
50000 h
Beschermingsgraad (IP)
IP65
Slagvastheid
IK10
Beschermingsklasse volgens IEC 61140
I
Nom. omgevingstemperatuur volgens IEC62722-2-1
-25 - 40 °C
Max. systeemvermogen
118.4 W
Lichtkleur
Wit
Kleurtemperatuur
5000 - 5000 K
Kleurweergave-index
70-79
Vermogensfactor
0.99
Breedte
125 mm
Hoogte/diepte
130 mm
Lengte
590 mm
Nom. stroom
500 - 500 mA
Kleur consistentie (McAdam ellips)
SDCM6
Lichtkleur regelbaar
Nee
Stralingshoek regelbaar
Nee
Lichtstroom regelbaar
Nee
meer specificaties
