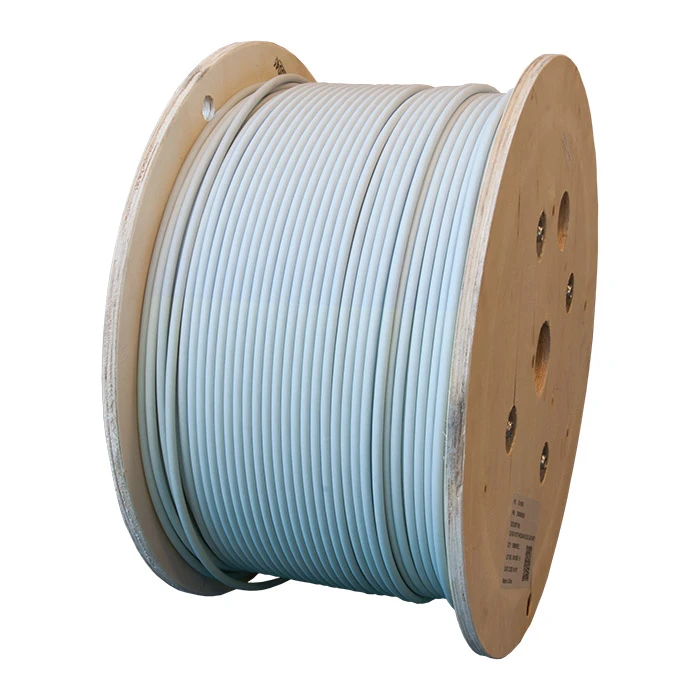

Data and communication cable Zybrnet 10G
Add to selection
General information
Ordercode YESSS
0389-6359
Product code
ZN605605000
EAN code
08719357009346
Product group
Data and communication cable
Brand
Zybrnet 10G
Product specifications
Conductor surface
Bare
Diameter conductor
0.573 mm
Conductor category
Class 1 = solid
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Core identification
Colour
Screen over stranding element
None
Stranding
Bundle
Screen over stranding
Foil
Material outer sheath
Other
Colour outer sheath
Grey
Reaction-to-fire according to EN 13501-6: Class
Dca
Reaction-to-fire according to EN 13501-6: Smoke production
s2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
d2
Reaction-to-fire according to EN 13501-6: Acidity
a1
Halogen free according to EN IEC 60754-2
Yes
Low smoke according to EN IEC 61034-2
Yes
Oil resistant according to EN IEC 60811-404
No
Category
6A (TIA)
NVP value
65 %
Suitable for underground installation
No
Conductor material
Copper
AWG size
23
Armouring/reinforcement
None
Cable geometry
Round
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
Yes
Weight
33.6 kg/km
Cable type
F/UTP
Flame retardant according to IEC 60332-1-2
Yes
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
Yes
Number of sheath layers
1
With rip cord
Yes
