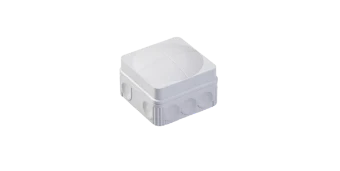

Box/housing for surface mounting on the wall/ceiling Wiska
Add to selection
General information
Ordercode YESSS
2278-5190
Product code
10060523
EAN code
04007685021982
Product group
Box/housing for surface mounting on the wall/ceiling
Brand
Wiska
Product specifications
Max. conductor cross section
2.5 mm²
Equipped with
Other
Shape
Square
Mounting method
Universal
For tube diameter
Other
Inlet from the rear
Yes
Length
76 mm
Width
76 mm
Depth
51 mm
Connectable
No
Number of inlets
10
Type of housing feed-through
Seal membrane
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP66
Cover model
Other
Cover attachment
Snapped on
Sealable
No
Rated insulation voltage Ui
400 V
Circuit integrity
None
With screening
No
Weatherproof
Yes
Operating temperature
-5 - 50 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
