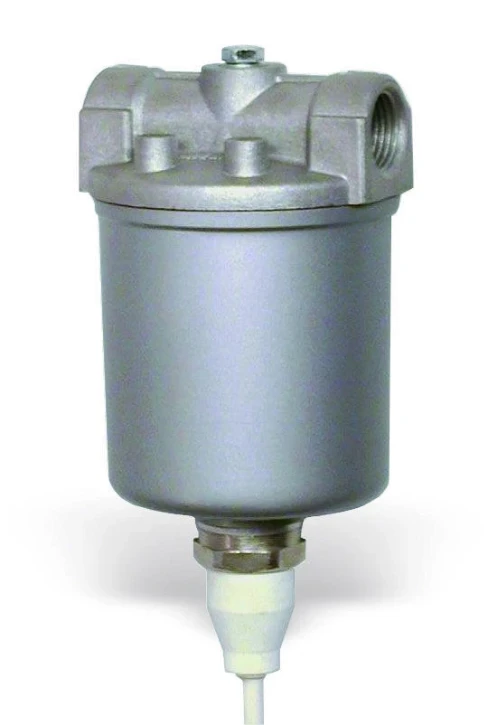

Bucket filter, single Watts
Add to selection
General information
Ordercode YESSS
3130-7863
Product code
0010170001
EAN code
08033460002637
Product group
Bucket filter, single
Brand
Watts
Product specifications
Material quality
Other
Surface protection
Untreated
With filter element
Yes
Nominal diameter
3/8 inch (10)
Connection
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
With coupling
No
Right-angled model
No
Mesh width of filter element
0.1 mm
Max. differential pressure at 20 °C
2 bar
Article compression class
Other
Max. medium temperature (continuous)
90 °C
With drain possibility (connection)
No
Length of connection 1
40 mm
Length of connection 2
40 mm
Housing material
Aluminium
Product information
