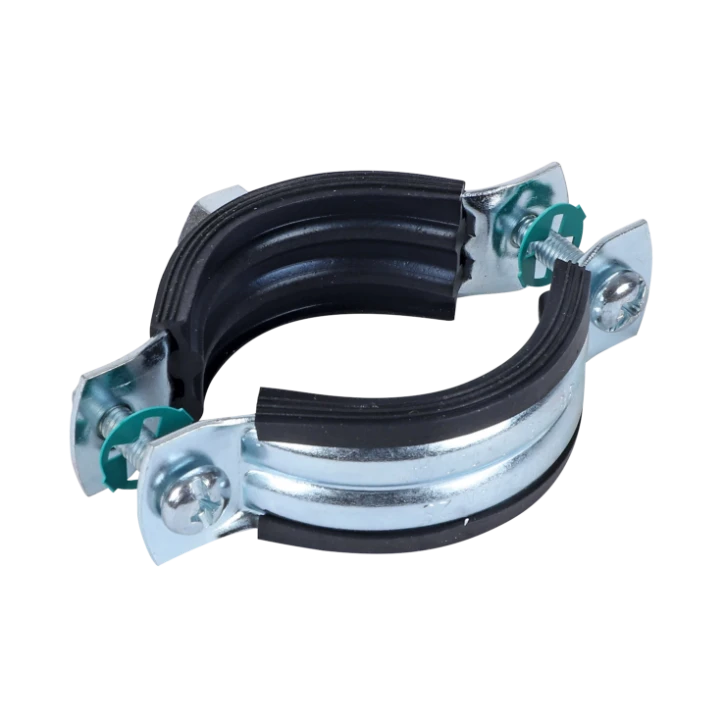

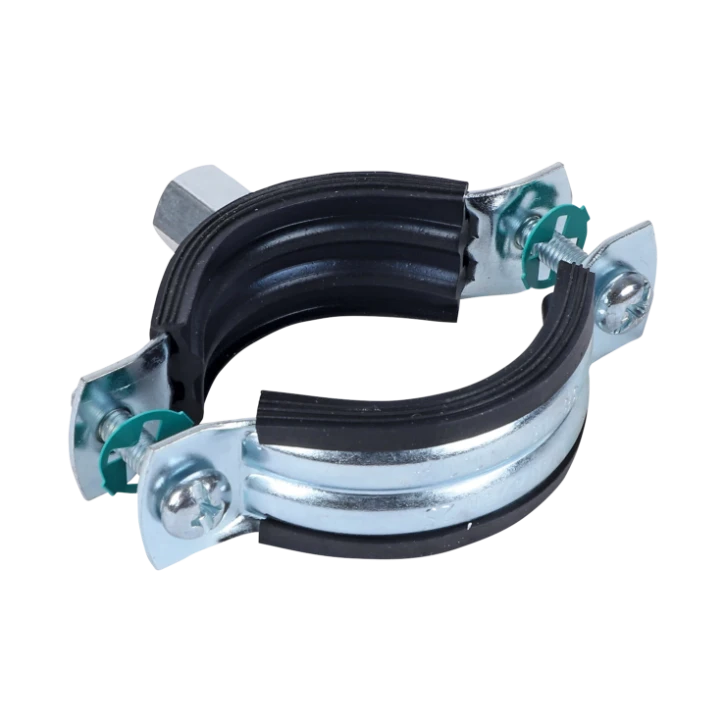

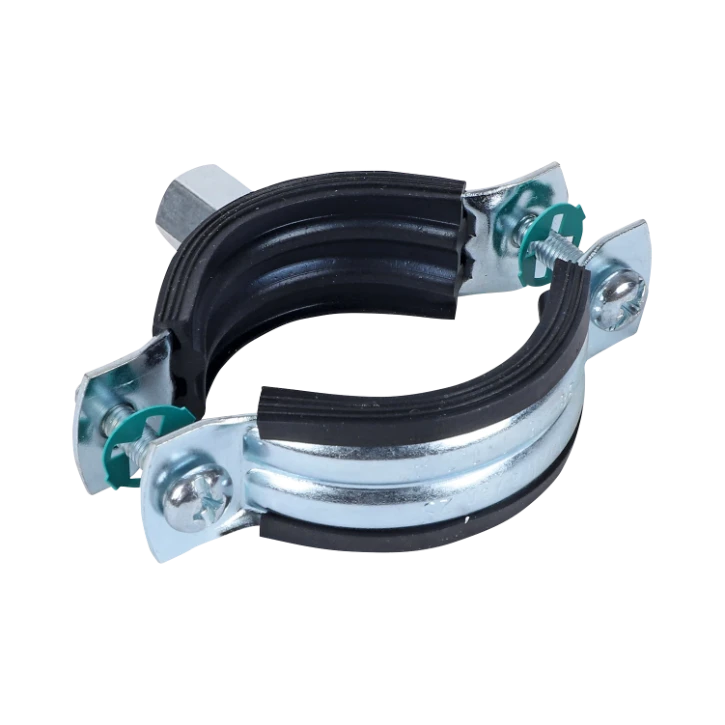

Two-part bracket round Walraven
Add to selection
General information
Ordercode YESSS
3043-1496
Product code
33435019
EAN code
08712993558889
Product group
Two-part bracket round
Brand
Walraven
Product specifications
Material
Steel
Surface protection
Galvanic/electrolytic zinc plated
Surface treatment
Untreated
Nominal diameter
DN 10
Outer pipe diameter
15 - 19 mm
Inlay
Rubber
Inlay damping value
22 dB(A)
Permitted work load
330 N
Connection facility
Internal thread
Connection size, connection facility
M8/M10
Lock facility
Double screw
Suitable for number of pipes
1
Width
56 mm
Height
45 mm
Depth
23 mm
FM quality mark
No
UL quality mark
No
ULC quality mark
No
LPCB quality mark
No
Suitable for steel tube
Yes
Suitable for stainless steel tube
Yes
Suitable for copper tube
Yes
Suitable for aluminium tube
Yes
Suitable for cast iron pipe
Yes
Suitable for plastic tube
Yes
Suitable for pipe coil
No
Layer thickness surface protection
5 µm
VdS quality mark
No
KIWA certified
No
Medium temperature (continuous)
-30 - 120 °C
