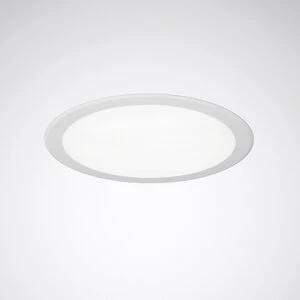

Downlight/spot/floodlight TRILUX twenty3
Add to selection
General information
Ordercode YESSS
3097-5488
Product code
7791240
EAN code
04018242593569
Product group
Downlight/spot/floodlight
Brand
TRILUX twenty3
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for low voltage cable system
No
Adjustability
Not adjustable
With movement sensor
No
With light sensor
No
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Plastic
Surface protection
Untreated
Housing colour
White
Material cover
Other
Surface brushed
No
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
Electronic transformer
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
None
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Light outlet
Direct
Impact strength
IK03
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
25 - 25 °C
Max. system power
19 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.95

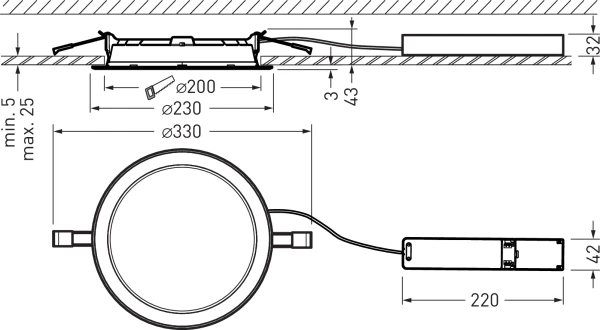

Height/depth
43 mm
Outer diameter
230 mm
Number of poles
3
Connection type
Push-in clamp
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
Yes
Filament test according to IEC 60695-2-11
650 °C - 30 s
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM4
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
No
Constant light output (CLO)
No
Flickering value Pst LM
0.3
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Stroboscope effect value SVM
0.3
Built-in diameter
200 - 200 mm
Max. number of luminaires per miniature circuit breaker B16 (MCB)
25
Max. number of luminaires per miniature circuit breaker C16 (MCB)
42
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Operation by Bluetooth
No
Product information
