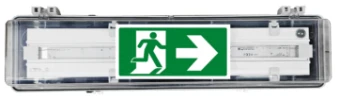

Explosion proof emergency and security luminaire TEPEx
Add to selection
General information
Ordercode YESSS
3121-8212
Product code
T100010
EAN code
03858895430269
Product group
Explosion proof emergency and security luminaire
Brand
TEPEx
Product specifications
Mounting method
Surface mounting
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Plastic
Voltage type
AC/DC
Nominal voltage
100 - 305 V
Type of control gear
LED operating device current-controlled
Suitable for labelling type
None
Type of indicator
Single-sided
Recognition distance
30 m
Wiring system
Continuous circuit/emergency circuit
Rated lifetime L70/B50 at 25 °C
115000 h
Degree of protection (IP)
IP66
Impact strength
IK08
Protection class according to IEC 61140
I
For Ex-zone gas
1, 2
For Ex-zone dust
21, 22
Nominal operation time
1.5 - 3 h
Suitable for lamp power
56 - 56 W
Max. system power
56 W
Luminous flux in emergency mode
1150 lm
Colour of light
White
Colour temperature
4300 - 6500 K
Colour rendering index CRI
80-89
Power factor
0.95
Width
200 mm
Height/depth
130 mm
Length
1370 mm
Type of wiring
Loop-through wiring included
Number of poles
5
Conductor cross section
2.5 mm²
Connection type
Screwed terminal
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
90 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
10 %
Constant light output (CLO)
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
A
Emergency power supply system
Central
Rated luminous flux according to IEC 62722-2- 1
7645 - 7645 lm
