ST SPT 610LM 3CCT IP65 WIT
Add to selection
General information
Ordercode YESSS
3097-4716
Product code
0005565
EAN code
05410288055657
Product group
Downlight/spot/floodlight
Brand
Sylvania
Serie
Start Spot IP65 3-CCT
Type
ST SPT 610LM 3CCT IP65 WH
ST SPT 610LM 3CCT IP65 WIT
ST SPT 610LM 3CCT IP65 WIT
STOCK
IN STOCK
0
piece
Product description

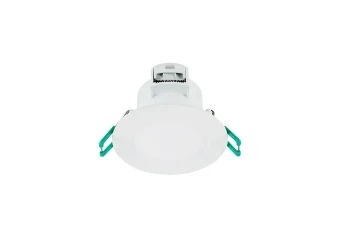

Integrated LED recessed spotlight, fixed, non dimmable, 3 CCT 2700K-3000K-4000K, 100° degree beam angle, polycarbonate white body, low profile 47mm recessed depth, IP65 from the front, IK03, loop-in/loop-out terminals for fast wiring, 87mm bezel diameter, 68-74mm cutout, frosted lens. Additional silver or black bezel can be ordered as accessory.
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Adjustability
Not adjustable
With movement sensor
No
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Plastic
Surface protection
Other
Housing colour
Other
Material cover
Other
Surface brushed
No
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
68000 h
Impact strength
IK03
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-10 - 40 °C
Max. system power
6 W
Colour of light
White
Colour temperature
2700 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.65
Width
47 mm
Height/depth
47 mm
Length
47 mm
Outer diameter
87 mm
Type of wiring
Loop-through wiring included
Number of poles
2
Conductor cross section
1.5 mm²
Connectable conductor cross section
0.75 - 1.5 mm²
Connection type
Push-in clamp
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
0 %
Constant light output (CLO)
No
Colour of light adjustable
Continuously variable
Luminous flux adjustable
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
246
Max. number of luminaires per miniature circuit breaker C16 (MCB)
418
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Nominal current
38.5 - 42 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Operation by Bluetooth
No
Compatible with Casambi
No
Movement sensor/presence detector technology
Other
Dimmable
No
With presence detector
No
Containing product according to 2019/2020/EU
Yes
Total harmonic distortion (THD)
100 %
Rated luminous flux according to IEC 62722-2- 1
610 - 610 lm
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Emergency power supply system
None
Emergency function monitoring system
None
Luminous flux in emergency mode
0 lm
Luminaire efficacy
104 - 104 lm/W
Built-in length
150 - 150 mm
Built-in width
150 - 150 mm
Built-in height
80 - 80 mm
