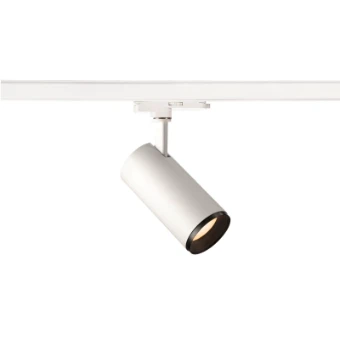

Downlight/spot/floodlight SLV
Add to selection
General information
Ordercode YESSS
3053-8322
Product code
1004470
EAN code
04024163246200
Product group
Downlight/spot/floodlight
Brand
SLV
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
Yes
Suitable for low voltage cable system
No
Adjustability
Swivelling
With movement sensor
No
With light sensor
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Aluminium
Surface protection
Lacquered
Housing colour
White
Surface brushed
No
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
Other
Light distributor
Other
Light distribution
Symmetric
Beam angle
21-40° - Medium beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
50000 h
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
-20 - 30 °C
Suitable for lamp power
20 - 20 W
Max. system power
20 W
Colour of light
White
Colour temperature
3000 - 3000 K
Colour rendering index CRI
90-100
Width
165 mm
Height/depth
85 mm
Length
185 mm
Outer diameter
85 mm
Type of wiring
Ending
Suitable for workplace according to EN 12464-1
No
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
Yes
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
IFTTT support available
No
Unified Glare Ratio (UGR)
16
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Nominal current
500 - 500 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Operation by Bluetooth
No
Reflector colour
Silver
