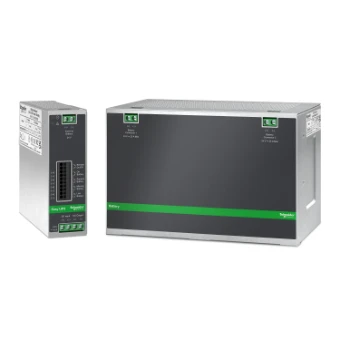

AC/DC-power supply Schneider Electric
Add to selection
General information
Ordercode YESSS
3085-8529
Product code
BVS240XDPDR
EAN code
00731304436942
Product group
AC/DC-power supply
Brand
Schneider Electric
Product specifications
Voltage type (supply voltage)
DC
1st secondary output voltage AC
0 - 0 V
2nd secondary output voltage AC
0 - 0 V
3rd secondary output voltage AC
0 - 0 V
1st secondary output voltage DC
24 - 24 V
2nd secondary output voltage DC
0 - 0 V
3rd secondary output voltage DC
0 - 0 V
Max. output current 1
10 A
Max. output current 2
0 A
Max. output current 3
0 A
Secondary voltage adjustable
No
Short-circuit-proof
Yes
Rated supply voltage AC 50 Hz
0 - 0 V
Rated supply voltage AC 60 Hz
0 - 0 V
Rated supply voltage DC
24 - 24 V
Output voltage stabilized
Yes
Power consumption
240 VA
Power output
240 W
Stabilized
Yes
Type of electric connection
Screw connection
Suitable for rail mounting
Yes
Suitable for distribution board
Yes
Built-in height
128.5 mm
Direct mounting possible
No
Width
123.8 mm
Height
128.5 mm
Depth
40 mm
Suitable for safety functions
Yes
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP20
Degree of protection (NEMA)
Other
