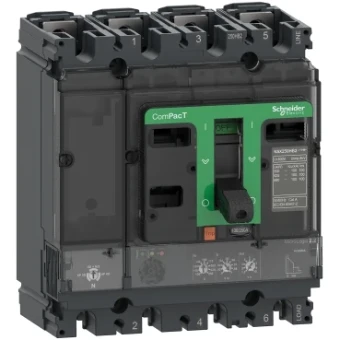

Power circuit-breaker for trafo/generator/installation protection Schneider Electric
Add to selection
General information
Ordercode YESSS
3074-3184
Product code
C10B42D100
EAN code
03606481996695
Product group
Power circuit-breaker for trafo/generator/installation protection
Brand
Schneider Electric
Product specifications
Rated permanent current Iu
100 A
Rated voltage
690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
25 kA
Overload release current setting
40 - 100 A
Adjustment range short-term delayed short-circuit release
60 - 1000 A
Adjustment range undelayed short-circuit release
1500 - 1500 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Yes
Number of poles
4
Position of connection for main current circuit
Front side
Type of control element
Wing knob
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP40
With integrated under voltage release
No
