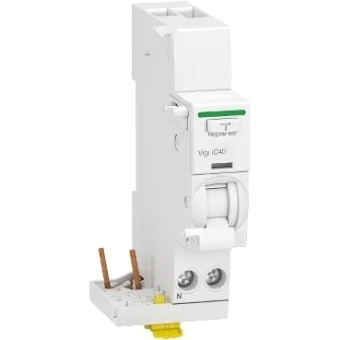

Residual current circuit breaker (RCCB) module Schneider Electric
Add to selection
General information
Ordercode YESSS
3035-4431
Product code
A9Y80625
EAN code
03606481327444
Product group
Residual current circuit breaker (RCCB) module
Brand
Schneider Electric
Product specifications
Nominal voltage
230 - 230 V
Nominal current
25 A
Rated fault current adjustable
No
Rated fault current
0.03 - 0.03 A
Max. delay time
0 ms
Delay adjustable
No
Number of poles
2
Leakage current type
A
Surge current capacity
0.25 kA
Frequency
50/60 Hz
Rated insulation voltage Ui
400 V
Rated impulse withstand voltage Uimp
4 kV
Connectable conductor cross section solid-core
1 - 16 mm²
Connectable conductor cross section multi-wired
1 - 10 mm²
Anti-nuisance tripping version
No
With interlocking device
No
Degree of protection (IP)
IP20
Pollution degree
3
Ambient temperature during operating
-25 - 60 °C
