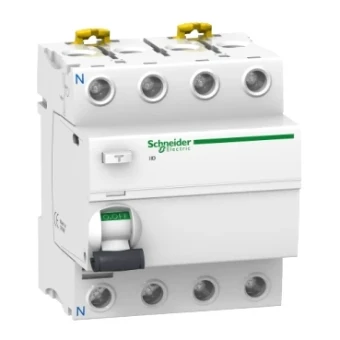

Residual current circuit breaker (RCCB) Schneider Electric
Add to selection
General information
Ordercode YESSS
1667-9857
Product code
A9R35440
EAN code
03606480089671
Product group
Residual current circuit breaker (RCCB)
Brand
Schneider Electric
Product specifications
Number of poles
4
Rated voltage
400 V
Rated current
40 A
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
6 kV
Mounting method
DIN rail
Leakage current type
A
Selective protection
Yes
Short-time delayed tripping
Yes
Surge current capacity
3 kA
Frequency
50/60 Hz
Additional equipment possible
Yes
With interlocking device
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Built-in depth
44 mm
Ambient temperature during operating
-25 - 60 °C
Pollution degree
3
Connectable conductor cross section multi-wired
1 - 25 mm²
Connectable conductor cross section solid-core
1 - 35 mm²
Rated fault current
0.3 A
Voltage type
AC
Explosion-proof
No
