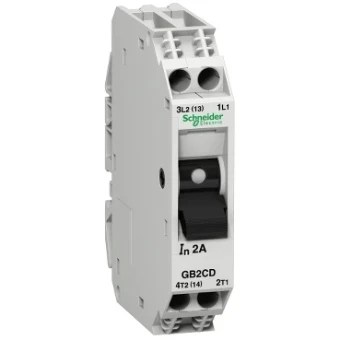

Miniature circuit breaker (MCB) Schneider Electric
Add to selection
General information
Ordercode YESSS
0057-5008
Product code
GB2CD07
EAN code
03389110214734
Product group
Miniature circuit breaker (MCB)
Brand
Schneider Electric
Product specifications
Release characteristic
Other
Number of poles (total)
2
Number of protected poles
1
Rated current
2 A
Rated voltage
250 V
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15 kA
Voltage type
AC
Frequency
50 - 60 Hz
Current limiting class
3
Concurrently switching neutral conductor
Yes
Overvoltage category
3
Pollution degree
2
Additional equipment possible
No
Width in number of modular spacings
1
Built-in depth
74 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-20 - 60 °C
Connectable conductor cross section multi-wired
0.75 - 4 mm²
Connectable conductor cross section solid-core
0.75 - 6 mm²
Flush-mounted installation
No
Explosion-proof
No
