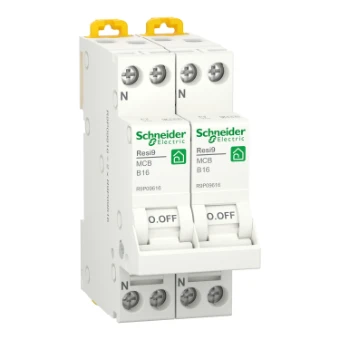

Miniature circuit breaker (MCB) Schneider Electric
Add to selection
General information
Ordercode YESSS
3059-8144
Product code
R9P09816
EAN code
03606481905093
Product group
Miniature circuit breaker (MCB)
Brand
Schneider Electric
Product specifications
Release characteristic
B
Number of poles (total)
4
Number of protected poles
2
Rated current
16 A
Rated voltage
230 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Voltage type
AC
Frequency
50 - 60 Hz
Current limiting class
3
Concurrently switching neutral conductor
Yes
Overvoltage category
3
Pollution degree
2
Additional equipment possible
No
Width in number of modular spacings
2
Built-in depth
44 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 60 °C
Connectable conductor cross section multi-wired
1 - 16 mm²
Connectable conductor cross section solid-core
1 - 25 mm²
Flush-mounted installation
No
Explosion-proof
No
