ComPacT - Lastscheider - NSX250NA - AC - 4P -
Add to selection
General information
Ordercode YESSS
3074-4039
Product code
C254250S
EAN code
03606481999306
Product group
Switch disconnector (AC)
Brand
Schneider Electric
Serie
ComPacT NSX NA, new generation
Type
Switch disconnector

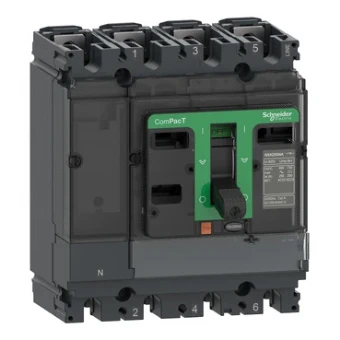

ComPacT - Lastscheider - NSX250NA - AC - 4P -
ComPacT - Lastscheider - NSX250NA - AC - 4P - 250A
STOCK
IN STOCK
0
piece
Product description
Deze ComPacT NSX250NA is een complete 4-polige lastscheider. Het wordt gebruikt om elektrische distributiecircuits te regelen en te isoleren. Het vereist een stroomopwaartse bescherming. De operationele stroom is 250 A bij 415 VAC 50/60 Hz voor de AC22A- en AC23A-gebruikscategorieën. De operationele spanning is 690VAC 50/60Hz. Hij wordt geleverd met een groot aantal optionele functies en accessoires die vaak voorkomen bij ComPacT NSX-vermogensschakelaars. De afmetingen voor deze 4-polige versie zijn 140mm x 161mm x 86mm. Het voldoet aan internationale normen (IEC 60947), CCC, EAC en maritieme specificaties.
Product specifications
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Version as reversing switch
No
Number of switches
1
Max. rated operation voltage Ue AC
690 V
Rated operating voltage
690 - 690 V
Rated permanent current Iu
250 A
Rated permanent current at AC-23, 400 V
250 A
Rated short-time withstand current lcw
3.5 kA
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
Yes
Motor drive integrated
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Colour control element
Black
Type of control element
Wing knob
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP30
