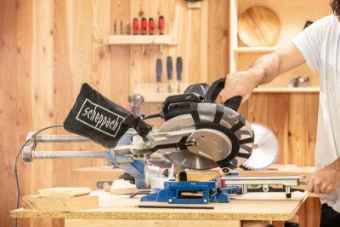

Table-, chop- and bevel saw, semi-stationary (electric) Scheppach
Add to selection
General information
Ordercode YESSS
3099-6126
Product code
5901222901
EAN code
04046664134282
Product group
Table-, chop- and bevel saw, semi-stationary (electric)
Brand
Scheppach
Product specifications
Nominal power consumption
2200 W
Voltage
230 V
Frequency
50 - 50 Hz
Idle rotational speed
4800 1/min
Saw blade diameter
254 mm
Saw blade bore hole
30 mm
Mitre setting left
45 °
Mitre setting right
45 °
Inclination setting left
45 °
Width of bearing surface
340 mm
Cutting width chop operation 90°/90°
340 mm
Cutting depth chop operation 90°/90°
90 mm
Cutting width chop operation 90°/45°
240 mm
Cutting depth chop operation 90°/45°
90 mm
Cutting width chop operation 45°/90°
340 mm
Cutting depth chop operation 45°/90°
46 mm
Cutting width chop operation 45°/45°
240 mm
Cutting depth chop operation 45°/45°
46 mm
Base frame included
No
Length
770 mm
Width
705 mm
Height
560 mm
Weight
14.4 kg
Sound pressure level
96.5 dB(A)
Sound power level
109.5 dB(A)
