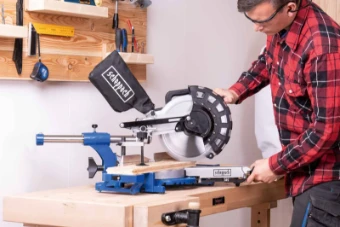

Table-, chop- and bevel saw, semi-stationary (electric) Scheppach
Add to selection
General information
Ordercode YESSS
3044-3654
Product code
5901216901
EAN code
04046664069935
Product group
Table-, chop- and bevel saw, semi-stationary (electric)
Brand
Scheppach
Product specifications
Nominal power consumption
2000 W
Voltage
230 V
Idle rotational speed
7000 1/min
Saw blade diameter
255 mm
Saw blade bore hole
30 mm
Mitre setting left
45 °
Mitre setting right
45 °
Inclination setting left
0 °
Inclination setting right
45 °
Width of bearing surface
248 mm
Length of bearing surface
248 mm
Cutting width chop operation 90°/90°
340 mm
Cutting depth chop operation 90°/90°
90 mm
Cutting width chop operation 90°/45°
240 mm
Cutting depth chop operation 90°/45°
78 mm
Cutting width chop operation 45°/90°
340 mm
Cutting depth chop operation 45°/90°
45 mm
Cutting width chop operation 45°/45°
240 mm
Cutting depth chop operation 45°/45°
45 mm
Cutting height table operation 90°
90 mm
Cutting height table operation 45°
45 mm
Base frame included
No
Length
770 mm
Width
595 mm
Height
590 mm
Weight
14.3 kg
