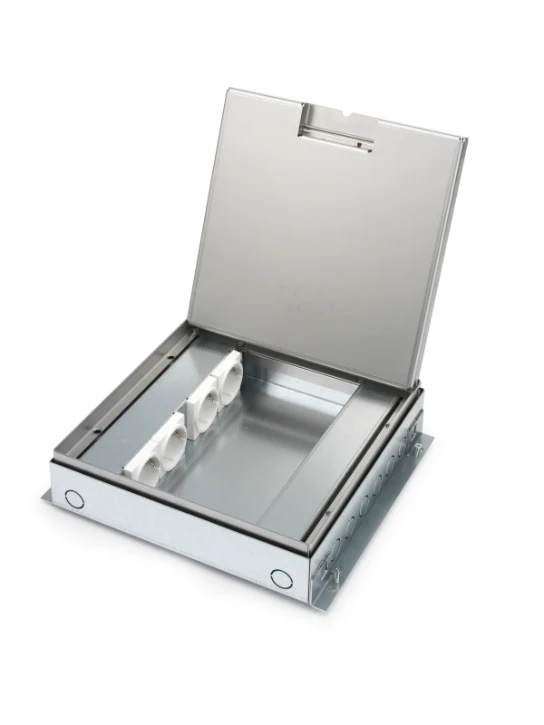

Device installation insert for subfloor installation O.C.S. Velox®
Add to selection
General information
Ordercode YESSS
3016-3103
Product code
33.70.022
EAN code
08719322730091
Product group
Device installation insert for subfloor installation
Brand
O.C.S. Velox®
Product specifications
Cover model
Square
Suitable for wet cleaning
No
Suitable for subfloor duct
No
Suitable for hollow floor
No
Suitable for double floor built-in
No
Number of device cups
4
With opening carpeting
Yes
Depth of flooring recess
15 mm
Protective frame carpeting
Yes
Min. built-in depth
64 mm
Colour
Other
Length built-in dimension
282 mm
Width built-in dimension
252 mm
Number of socket outlets with protective contact CEE 7/3 (type F)
4
Number of socket outlets British Standard BS 1363
0
Number of inlets
18
Housing material
Steel
Surface protection housing
Galvanised
Material cover
Stainless steel
Surface protection cover
Anodised
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for concrete installation
Yes
Suitable for floors in computer rooms
No
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
0
Outer length
252 mm
Outer width
252 mm
Degree of protection (IP) when in use (cable outlet open)
IP20
Degree of protection (IP) when not in use (cable outlet closed)
IP20
Number of socket outlets with protective contact CEE 7/5 (type E)
0
Product information
