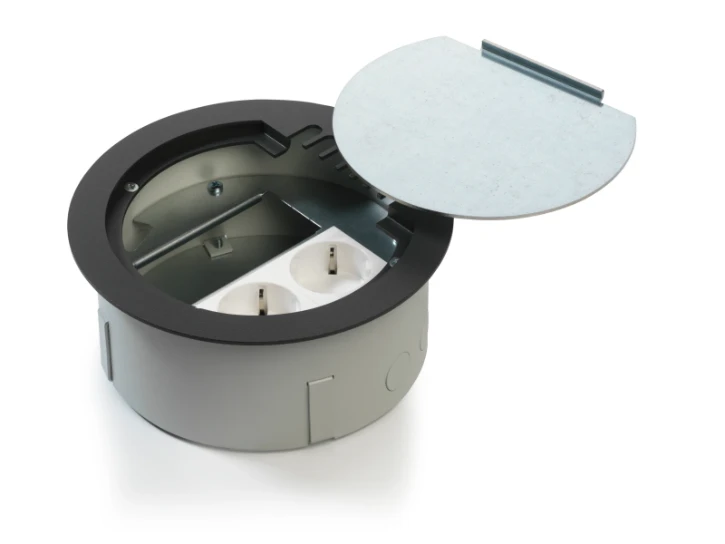

Rondo 160 - 2x 230V RA + 2x Leeg M45

Add to selection
General information
Ordercode YESSS
3016-3122
Product code
33.73.002
EAN code
08719322730251
Product group
Device installation insert for subfloor installation
Brand
O.C.S. Rondo
Serie
Vloerdozen
Type
Rondo
Rondo 160 - 2x 230V RA + 2x Leeg M45 Rondo 160 - 2x 230V RA + 2x Leeg M45 - RAL7024 deksel
STOCK
IN STOCK
0 piece
Product description

Vloerdoos OCS Rondo 160 is een vloerdoos die dankzij de ronde vorm makkelijk is te integreren. OCS produceert de vloerdoos op duurzame wijze in Nederland.

  • Dankzij het ronde design ideaal voor renovatieprojecten en bestaande vloeren.
  • Standaard leverbaar met 2 of 4x 230V, compleet voorbedraad geleverd, en RJ45 uitsparingen of M45 modules.
  • Deksel geschikt voor parket, tapijt of laminaat. Stalen rand in kleur RAL7024
  • Dankzij brede buisinvoeren en knock-outs gemakkelijk te installeren. Én een duidelijke ins

    Product specifications
    Cover model
    Round
    Suitable for wet cleaning
    No
    Suitable for subfloor duct
    No
    Suitable for hollow floor
    No
    Suitable for double floor built-in
    No
    Number of device cups
    2
    With opening carpeting
    Yes
    Depth of flooring recess
    5 mm
    Protective frame carpeting
    No
    Min. built-in depth
    82 mm
    Colour
    Grey
    RAL-number
    7024
    Outer diameter
    183 mm
    Length built-in dimension
    16 mm
    Width built-in dimension
    160 mm
    Built-in diameter
    163.4 mm
    Number of socket outlets with protective contact CEE 7/3 (type F)
    2
    Number of socket outlets British Standard BS 1363
    0
    Number of inlets
    8
    With cable outlet in cover
    Yes
    Housing material
    Steel
    Surface protection housing
    Galvanised
    Material cover
    Steel
    Surface protection cover
    Galvanised
    Surface treatment cover
    Untreated
    Suitable for indoor installation
    Yes
    Suitable for outdoor installation
    No
    Suitable for concrete installation
    Yes
    Suitable for floors in computer rooms
    No
    Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    0
    Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    0
    Lockable cover
    No
    Outer length
    183 mm
    Lock control
    Other
    Outer width
    183 mm
    Degree of protection (IP) when in use (cable outlet open)
    IP20
    Degree of protection (IP) when not in use (cable outlet closed)
    IP20
    Number of socket outlets with protective contact CEE 7/5 (type E)
    0
