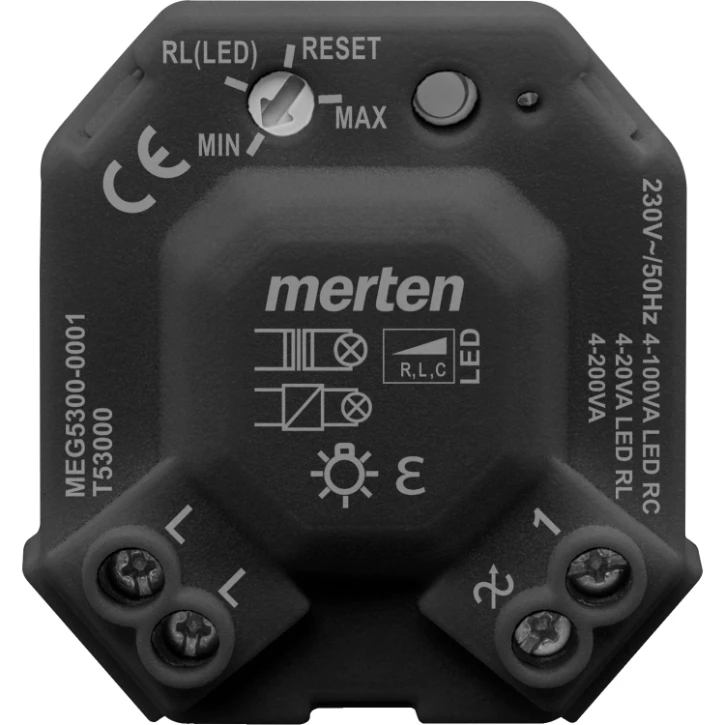

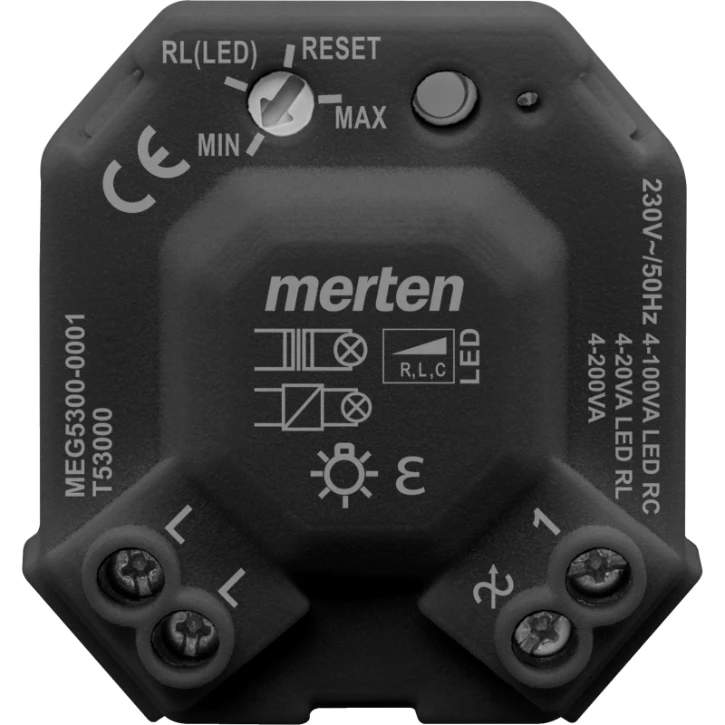

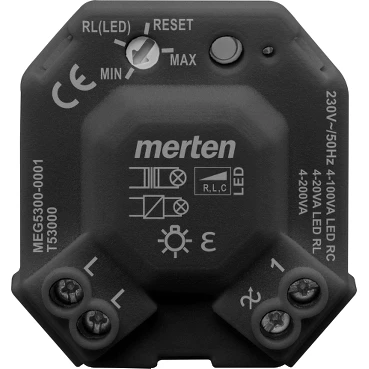

Dimmer Merten by Schneider Electric
Add to selection
General information
Ordercode YESSS
3012-7721
Product code
MEG5300-0001
EAN code
04042811185107
Product group
Dimmer
Brand
Merten by Schneider Electric
Product specifications
Assembly arrangement
Basic element with complete housing
Method of operation
Other
App control via Bluetooth
No
Dimming phase cut-on (leading edge)
Yes
Dimming phase cut-off (trailing edge)
Yes
Serial dimmer
No
Type of load
Universal and LED Retrofit
Substation input
Yes
Light value memory
Yes
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Other
Material
Other
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
Transparent
No
Suitable for degree of protection (IP)
IP20
Impact strength
IK02
Nominal voltage
230 - 230 V
Frequency
50 - 50 Hz
Connection type
Screwed terminal
Core cross section
2.5 - 2.5 mm²
Device width
40 mm
Device height
45 mm
Device depth
20 mm
Min. depth of built-in installation box
40 mm
Nominal power resistive load
4 - 200 W
Nominal power inductive load
4 - 200 VA
Nominal power capacitive load
4 - 200 VA
Max. switching power LED
100 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
