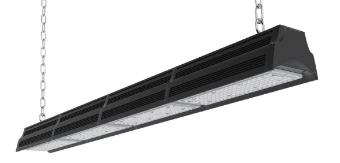

High bay luminaire Luxna Lighting
Add to selection
General information
Ordercode YESSS
3109-4189
Product code
LXHBL200CW
Product group
High bay luminaire
Brand
Luxna Lighting
Product specifications
Lamp type
LED not exchangeable
With light source
Yes
Suitable for auxiliary lamp
No
Housing material
Aluminium
Housing colour
Black
Voltage type
AC
Nominal voltage
110 - 270 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Light distribution
Symmetric
Reflector
Other
Material reflector
Plastic
Beam angle
41-80° - Wide beam
Rated lifetime L70/B50 at 25 °C
50000 h
Degree of protection (IP)
IP65
Impact strength
IK10
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Max. system power
200 W
Colour of light
White
Colour temperature
4850 - 5100 K
Colour rendering index CRI
80-89
Power factor
0.98
Width
135 mm
Height/depth
72 mm
Length
1174 mm
Type of wiring
Ending
Number of poles
1
Conductor cross section
1.5 mm²
Connection type
Other
Suitable for emergency lighting
No
With protective cover
No
Exchangeable control gear
No
Constant light output (CLO)
Yes
Colour of light adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
4
Max. number of luminaires per miniature circuit breaker C16 (MCB)
4
Energy efficiency class of the light source according to EU regulation 2019/2015
B
Operation by Bluetooth
No
