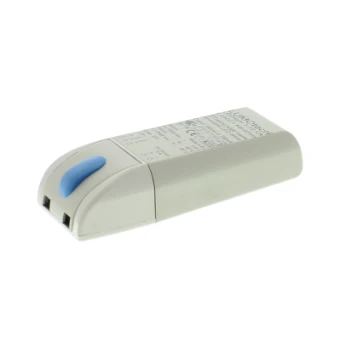

LED driver Lumiko
Add to selection
General information
Ordercode YESSS
0543-7942
Product code
876805
EAN code
08716643036826
Product group
LED driver
Brand
Lumiko
Product specifications
Model
Dynamic
Suitable for outdoor use
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Housing
Plastic housing
Suitable for constant current
Yes
Suitable for constant voltage
No
Output voltage
6 - 38 V
Output current
350 - 700 mA
Suitable for DC-voltage (primary side)
No
Output power
1 - 13.3 W
Degree of protection (IP)
IP20
Protection class according to IEC 61140
II
Length
119 mm
Width
38 mm
Height
28.5 mm
Constant light output (CLO)
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Dimmable
Yes
Dimming DALI-2
No
Input voltage
198 - 264 V
Frequency input voltage
50 - 60 Hz
Independently operating
Yes
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Short-circuit protected
Yes
Dimming D4i
No
Efficiency
73 %
Mains surge immunity (common mode, L/N-Ground)
1 kV
Mains surge immunity (differential mode, L-N)
0.5 kV
Emergency power supply system
None
Ambient temperature
-20 - 50 °C
Max. number of luminaires per miniature circuit breaker B16 (MCB)
149
Max. number of luminaires per miniature circuit breaker C16 (MCB)
177
Driver lifetime
30000 h
