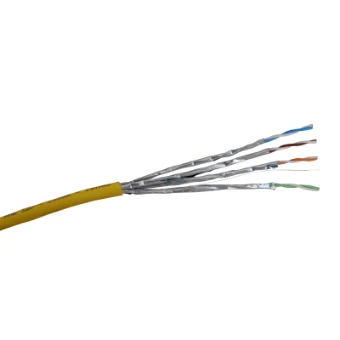

Data and communication cable Legrand
Add to selection
General information
Ordercode YESSS
3019-7472
Product code
032884
EAN code
03414971909144
Product group
Data and communication cable
Brand
Legrand
Product specifications
Conductor surface
Bare
Diameter conductor
0.56 mm
Nominal cross section conductor
0.25 mm²
Conductor category
Class 1 = solid
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Polyethylene (PE)
Core identification
Colour
Screen over stranding element
Foil
Stranding
Bundle
Screen over stranding
None
Longitudinal water blocking cable
No
Radial water blocking cable
Yes
Protective sheath
None
Material outer sheath
Other
Specification material outer sheath
Polyethylene (PE)
Colour outer sheath
Yellow
Reaction-to-fire according to EN 13501-6: Class
Cca
Reaction-to-fire according to EN 13501-6: Smoke production
s1
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
d1
Reaction-to-fire according to EN 13501-6: Acidity
a1
Halogen free according to EN IEC 60754-2
Yes
Low smoke according to EN IEC 61034-2
Yes
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
7.7 mm
Min. permitted bending radius, moving application with forced guidance
62 mm
Min. permitted bending radius, moving application/free movement
62 mm
Min. permitted bending radius, stationary application/permanent installation
31 mm
Permitted cable outer temperature during assembling/handling
0 - 50 °C
Permitted cable outer temperature after assembling without vibration
-20 - 60 °C
Category
6A (TIA)
NVP value
65 %
Suitable for underground installation
No
Conductor material
Copper
AWG size
23
Core identification according to HD 308 S2
No
Approved type of underground installation
Other
Armouring/reinforcement
None
Cable geometry
Round
Certified for shipboard application
No
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
No
Weight
62 kg/km
Cable type
U/FTP
Drain wire
No
Cable width approximate
7.7 mm
Cable height approximate
7.7 mm
Characteristic impedance
100 Ohm
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
No
Flame retardant according to IEC 60332-3-22 (Cat A)
No
Flame retardant according to IEC 60332-3-23 (Cat B)
No
Flame retardant according to IEC 60332-3-24 (Cat C)
Yes
Flame retardant according to IEC 60332-3-25 (Cat D)
No
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-3
No
Circuit integrity according to IEC 60331-23
No
Duplex
No
Suitable for use as security alarm cable
No
With rip cord
No
