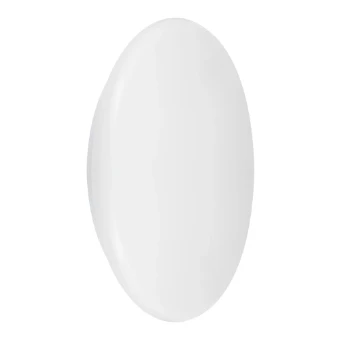

SURFACE CIRCULAR 350 3CCT SENSOR 18W 3CCT IP44

Add to selection
General information
Ordercode YESSS
3105-2444
Product code
4099854042096
EAN code
04099854042096
Product group
Ceiling-/wall luminaire
Brand
LEDVANCE
Serie
SURFACE CIRCULAR 350 3CCT SENSOR
Type
SF CIRC 350 SEN V 18W 3CCT IP44
SURFACE CIRCULAR 350 3CCT SENSOR 18W 3CCT IP44 SURFACE CIRCULAR 350 3CCT SENSOR 18W 3CCT IP44
STOCK
IN STOCK
0 piece
Product description

IP44 wand- en plafondarmatuur met en zonder HF sensor en instelbare CCT. Productkenmerken: Hoogfrequente sensor voor daglicht- en bewegingsdetectie. Soort bescherming: IP44 (plafondmontage), IP20 (wandmontage). Schokbestendigheid: IK03. Metalen behuizing, PMMA afdekking. Omgevingstemperatuur bij gebruik: -20…+40 °C. Alleen voor gebruik binnenshuis, niet geschikt voor gebruik buitenshuis. Productvoordelen: Eenvoudige aanpassing van sensorbereik, daglichtdetectie en insteltijd. Binnenverlichtingsarmatuur met hoge lichtopbrengst. Zeer veelzijdig dankzij instelbare CCT in 3.000K, 4.000K en 5.000K. Verlaagde totale hoogte van slechts 75 mm in vergelijking met de standaardversie. Energiebesparing tot 55 % vergeleken met armaturen op basis van CFL technologie. Eenvoudige en snelle installatie. Zeer homogeen licht. 5 jaar garantie. Toepassingsgebieden: Gangen. Trappenhuizen. Badkamers. Foyers. Technische uitrusting: Vervangende kap optioneel verkrijgbaar.

Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
0
Lamp holder
Other
Housing material
Steel
Housing colour
White
Type of grid
Other
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
Electronic ballast
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
50000 h
Impact strength
IK03
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Suitable for emergency lighting
No
With movement sensor
Yes
With light sensor
Yes
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Max. system power
18 W
Colour of light
White
Colour temperature
3000 - 5000 K
Colour rendering index CRI
80-89
Power factor
0.7
Height/depth
75 mm
Length
350 mm
Outer diameter
350 mm
Type of wiring
Ending
Number of poles
2
Connection type
Push-in clamp
Surface protection housing
Powder coating
Nominal current
85 - 85 mA
Exchangeable control gear
Yes
Dimming DALI-2
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
104
Max. number of luminaires per miniature circuit breaker C16 (MCB)
133
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG0
Colour of light adjustable
Positions
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Dimmable
No
Luminaire efficacy
80 - 80 lm/W
Rated luminous flux according to IEC 62722-2- 1
1440 - 1440 lm
Degree of protection (IP), front side
IP44
Max. number of luminaires per miniature circuit breaker C10 (MCB)
83
Ball-proof according to DIN 18032-3
No
Suitable for clamp-mounting
No
With switch
No
more specifications
