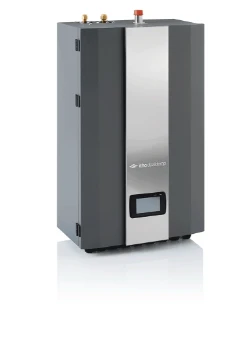

Heat pump (air/water) split type Itho Daalderop
Add to selection
General information
Ordercode YESSS
3055-0852
Product code
03-00635
EAN code
08713418046189
Product group
Heat pump (air/water) split type
Brand
Itho Daalderop
Product specifications
Model
Indoor unit
Heating capacity at 7/35 °C according to EN 14511
6.4 kW
COP at 7/35 °C according to EN 14511
4.26
COPd at Tj = +7 °C
5.9
Suitable for additional heating central heating
Yes
Room temperature control
Yes
Type of regulation
Weather-dependent control
Kind of optimization
Room thermostat
External controller required
Yes
Suitable for hot tap water
Yes
Suitable for active cooling
Yes
Cooling integrated
Yes
Cooling performance at 35/18 °C according to EN 14511
4.8 - 6 kW
Cooling performance at 35/7 °C according to EN 14511
3.8 - 4.9 kW
Suitable for swimming pool water heating
No
Swimming pool controls
No
Regulation for central heating boiler control
Yes
Regulation for buffer tank control
Yes
With electric heating element
Yes
Power electric heating element
2 - 6 kW
Heating power electrical element adjustable in stages
Yes
Modulating compressor
Yes
Modulation percentage
37 - 100 %
Type of refrigerant
R410a
Connection voltage
230 V
Fuse (slow)
16 A
External pressure system pump available at nominal flow
40 bar
Max. heating water supply temperature
55 °C
Max. pressure of hot tap water
6 bar
Nominal volume flow rate output system
0.43 l/s
Max. operating pressure output system
4.2 bar
Remote operation possible
No
Data transfer via USB
No
Data transfer via internet
No
Data transfer via bus connection
No
Type of pump (system pump)
Energy saving
Type voltage pump (system pump)
DC
Speed control pump (system pump)
Built-in (integrated)
Type of speed control (system pump)
Stepped
Connection and control multiple output systems possible
Yes
Sofstarter built-in
No
Limitation max. electric power consumption
15 A
ηwh (water heating energy efficiency)
100.3 %
Capacity profile
L
Max. pipe length
20 m
Nominal diameter fluid pipe
1/4 inch
Nominal diameter suction pipe
1/2 inch
Width indoor unit
505 mm
Height indoor unit
790 mm
Depth indoor unit
288 mm
Weight indoor unit
49 kg
Sound performance level indoor unit according to EN 12102 at 0/35 °C
47.2 dB(A)
Sound pressure level indoor unit according to EN 12102 at 0/35 °C /1m distance
33 dB
Degree of protection (IP) interior unit
IPX4
Refrigerant pre-charge
1.3 kg
Global warming potential (GWP)
2088
Water heating energy efficiency class according to 811/2013/EU
A
Heating capacity at -7/35 °C according to EN 14511
4.5 kW
Solar integration
No
PED (Pressure Equipment Directive) category according to 2014/68/EU
2
ηs, h (low temperature application (35 °C) at average conditions)
175.6 %
Energy efficiency class space heating (35 °C) at average conditions
A+++
ηs, h (medium temperature application (55 °C) at average conditions)
176 %
Cold tap water connection
Compression ring
Outer pipe diameter cold tap water
15 mm
Hot tap water connection
Compression ring
Outer pipe diameter hot tap water
15 mm
Connection output system
External thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter output system
1 inch (25)
