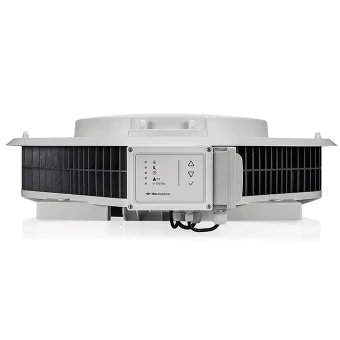

Ventilator for mounting on the roof Itho Daalderop
Add to selection
General information
Ordercode YESSS
3020-3472
Product code
03-00412
EAN code
08713418038924
Product group
Ventilator for mounting on the roof
Brand
Itho Daalderop
Product specifications
Housing material
Plastic
Housing material quality
Polypropylene (PP)
Surface protection housing
Untreated
Material impeller
Plastic
Material quality impeller/pump wheel
Polyethylene (PE)
Surface protection impeller
Untreated
Frequency
50 Hz
Specific fan power at Qmax
0.464 kW/(m³/s)
Nominal current
1.9 A
Single-speed motor
No
Multi-speed motor with
Other
With maintenance-/service switch
Yes
With thermal overload protection
Yes
Back draught shutter
Optional
Fan tiltable
No
Electrical connection
Terminals
Exhaust direction
Horizontal
Cover design
Rectangular
Indirect drive
No
Axial model
No
Air supply roof fan
No
Max. medium temperature (continuous)
40 °C
Operating height
215 mm
Base size, internal, square
565 mm
Max. air volume at 50 Pa
3785 m³/h
Max. air volume at 100 Pa
3570 m³/h
Max. air volume at 150 Pa
3260 m³/h
Max. air volume at 200 Pa
2870 m³/h
Max. air volume at 250 Pa
2510 m³/h
Max. air volume at 300 Pa
2150 m³/h
Max. air volume at 400 Pa
1360 m³/h
Max. air volume at 500 Pa
480 m³/h
Nominal voltage
230 V
Type of motor
Electronically commutated (EC)
Number of phases
1
With pressure sensor
Yes
Suitable for (extra) pressure sensor
No
With constant volume flow control
No
Integrated timer
Yes
With wireless remote control
No
Suitable for wireless remote control
No
Operation by app
No
Supporting protocol for MODBUS
No
Number of poles
Other
Sound pressure level at 4 m (outdoor) at Qmax
61.5 dB(A)
With sound absorber
No
Pitch measure
476 - 476 mm
Max. electric power input
420 W
