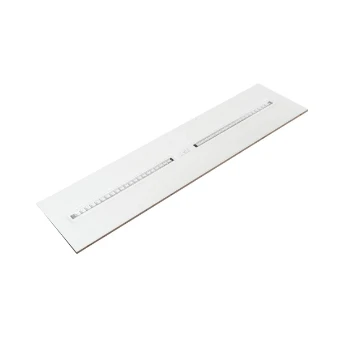

Ceiling-/wall luminaire INTERLight
Add to selection
General information
Ordercode YESSS
3098-5777
Product code
IL-PT195K4O
EAN code
08720195276906
Product group
Ceiling-/wall luminaire
Brand
INTERLight
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
Yes
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Steel
Housing colour
White
Material cover
Other
Type of grid
High-gloss
Voltage type
AC
Nominal voltage
230 - 230 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
Yes
Light distributor
Reflector
Light distribution
Symmetric
Beam angle
41-80° - Wide beam
Light outlet
Direct
Impact strength
IK02
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-10 - 40 °C
Suitable for emergency lighting
Yes
With movement sensor
Yes
With light sensor
Yes
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
28 - 28 W
Max. system power
28 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.95
Width
1195 mm
Height/depth
30 mm
Length
295 mm
Built-in height/depth
40 mm
Type of wiring
Ending
Number of poles
2
Connection type
Push-in clamp
Unified Glare Ratio (UGR)
19
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Product information
