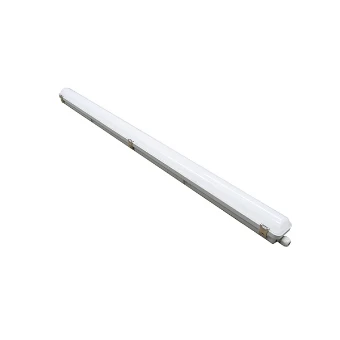

Ceiling-/wall luminaire INTERLight
Add to selection
General information
Ordercode YESSS
3097-5472
Product code
IL-WP6020K4S+
EAN code
08720195276821
Product group
Ceiling-/wall luminaire
Brand
INTERLight
Product specifications
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
Yes
Suitable for workplace according to EN 12464-1
No
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Plastic
Housing colour
Grey
Material cover
Plastic, opal
Type of grid
None
Voltage type
AC
Nominal voltage
230 - 230 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
50000 h
Impact strength
IK08
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
-25 - 40 °C
Suitable for emergency lighting
Yes
With movement sensor
Yes
With light sensor
Yes
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
18 - 18 W
Max. system power
18 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.9
Width
80 mm
Height/depth
76 mm
Length
676 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
3
Connection type
Push-in clamp
Surface protection housing
Plastic-coated
Nominal current
200 - 350 mA
Exchangeable control gear
Yes
Colour consistency (McAdam ellipse)
SDCM5
Max. number of luminaires per miniature circuit breaker B16 (MCB)
72
Max. number of luminaires per miniature circuit breaker C16 (MCB)
72
Flickering value Pst LM
0.9
Stroboscope effect value SVM
0.35
Colour of light adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Dimmable
No
Luminaire efficacy
133.3 - 135 lm/W
Rated luminous flux according to IEC 62722-2- 1
1350 - 2400 lm
Total harmonic distortion (THD)
19 %
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP66
Max. number of luminaires per miniature circuit breaker C10 (MCB)
45
Connectable conductor cross section
0.75 - 1.5 mm²
Suitable for clamp-mounting
No
With mounting material
Yes
