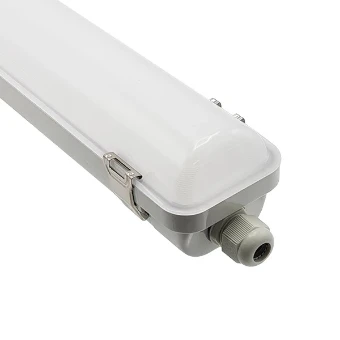

Easyfit+ IP66 opbouw 34W 4.000K 4.600lm 1.200mm incl. driver
Add to selection
General information
Ordercode YESSS
3096-3458
Product code
IL-WP12040K4+
EAN code
08720195276609
Product group
Ceiling-/wall luminaire
Brand
INTERLight
Serie
Easyfit+
Type
Waterproof
Easyfit+ IP66 opbouw 34W 4.000K 4.600lm 1.200mm incl. driver
Easyfit+ IP66 opbouw 34W 4.000K 4.600lm 1.200mm incl. driver
STOCK
IN STOCK
1
piece
Product description
De Easyfit+ waterdichte armaturen zijn de opvolger van onze eerste generatie Easyfit waterdichte opbouwarmaturen. De beste eigenschappen van de eerste generatie zijn doorontwikkeld tot een volwaardige opvolger met meer gemak en een beter rendement.
Product specifications
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
Yes
Suitable for workplace according to EN 12464-1
No
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Plastic
Housing colour
Grey
Material cover
Plastic, opal
Type of grid
None
Voltage type
AC
Nominal voltage
230 - 230 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
170000 h
Impact strength
IK08
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Rated ambient temperature according to IEC 62722-2-1
-25 - 40 °C
Suitable for emergency lighting
Yes
With movement sensor
No
With light sensor
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
21 - 34 W
Max. system power
34 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.9
Width
80 mm
Height/depth
76 mm
Length
1236 mm
Type of wiring
Loop-through wiring included
Number of poles
5
Conductor cross section
2.5 mm²
Connection type
Push-in clamp
Surface protection housing
Plastic-coated
Nominal current
200 - 350 mA
Exchangeable control gear
Yes
Colour consistency (McAdam ellipse)
SDCM5
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
93 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
90 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
85 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
5 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
10 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
15 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
52
Max. number of luminaires per miniature circuit breaker C16 (MCB)
66
Flickering value Pst LM
0.9
Stroboscope effect value SVM
0.35
Colour of light adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Dimmable
No
Luminaire efficacy
135.3 - 142.9 lm/W
Rated luminous flux according to IEC 62722-2- 1
3000 - 4600 lm
Total harmonic distortion (THD)
19 %
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP66
Max. number of luminaires per miniature circuit breaker C10 (MCB)
41
Connectable conductor cross section
0.75 - 1.5 mm²
Suitable for clamp-mounting
No
With mounting material
Yes
