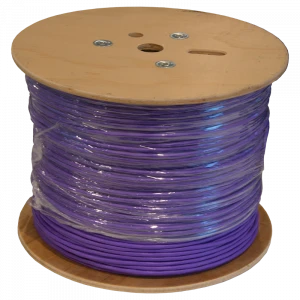

Data and communication cable Grayle
Add to selection
General information
Ordercode YESSS
3119-6178
Product code
ZN500BC11175000M
EAN code
08719357019628
Product group
Data and communication cable
Brand
Grayle
Product specifications
Conductor category
Class 5 = flexible
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Material core insulation
Polyvinyl chloride (PVC)
Core identification
Colour
Screen over stranding element
None
Material outer sheath
Polyvinyl chloride (PVC)
Colour outer sheath
Purple
Reaction-to-fire according to EN 13501-6: Class
None
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Halogen free according to EN IEC 60754-2
No
Low smoke according to EN IEC 61034-2
No
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
5.4 mm
Category
6
Suitable for underground installation
No
Conductor material
Copper
AWG size
24
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
Yes
Weight
23 kg/km
Cable type
U/UTP
