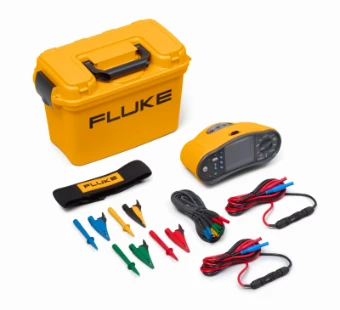

Photovoltaic testing device Fluke
Add to selection
General information
Ordercode YESSS
3116-1272
Product code
6008183
EAN code
00195112127940
Product group
Photovoltaic testing device
Brand
Fluke
Product specifications
With display
Yes
Type of interface
USB
Type of power supply
Battery
Measured value memory
Yes
Continuity resistor
0.2 - 2000 Ohm
Continuity measurement current
200 - 400 mA
Compensation of measuring line resistance
Manual
Open circuit voltage measurement Uoc
5 - 1000 V
Short circuit current measurement Isc
0.2 - 20 A
Isolation resistance measuring range
0.2 - 999 M Ohm
Insulation resistance measurement voltage
50 - 1000 V
External voltage detection
Yes
Polarity check
Yes
Earth fault measurement
Yes
Measurement of solar radiation
No
Temperature measurement
No
Module database
Yes
Parallel line resistor measurement Rp
No
Internal serial resistance measurement Rs
No
Measurement Maximum Power Point (MPP)
No
Peak performance measurement (Ppk)
No
Transposition to STC
No
Transposition to NOCT
No
Current voltage curve trace
No
Method of current voltage curve trace
Other
Degree of protection (IP)
IP40
Weight
1.4 kg
Fill factor measurement (FF)
No
Power measurement
DC
Inverter efficiency measurement
No
With remote control
No
Measuring circuit category
CAT III
Max. voltage measuring circuit category
1000 V
Length
250 mm
Width
125 mm
Height
100 mm
Weight including battery-pack
1.4 kg
Product information
