Mounting rail/-profile Fischer
Add to selection
General information
Ordercode YESSS
3116-3735
Product code
572542
EAN code
04048962521399
Product group
Mounting rail/-profile
Brand
Fischer

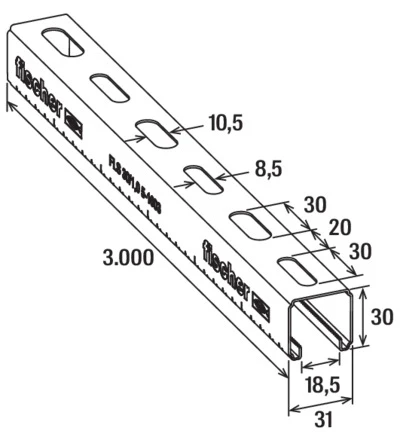

Product specifications
Length
3000 mm
Width
31 mm
Height
30 mm
Material thickness
1 mm
Profile shape
C-profile
Model
Singular profile
With toothing
Yes
Snap-off
No
Load bearing capacity
0.48 kN
Area moment of inertia Iy
1.02 cm4
Area of inertia Iz
1.46 cm4
Moment of resistance Wy
0.64 cm³
Moment of resistance Wz
0.94 cm³
Suitable for circuit integrity
No
Material
Steel
Material quality
Other
Surface protection
Galvanic/electrolytic zinc plated
