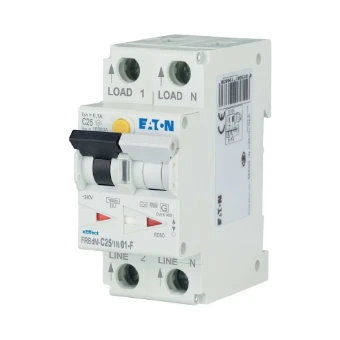

Dig. aardlekaut. (RCBO) FRBdM, 1P+N, 25A, C-kar., 100mA, 10kA, F-type
Add to selection
General information
Ordercode YESSS
3049-6249
Product code
300628
EAN code
09010238813861
Product group
Earth leakage circuit breaker
Brand
Eaton
Serie
xEffect
Type
FRBDM-C25/1N/01-F
Dig. aardlekaut. (RCBO) FRBdM, 1P+N, 25A, C-kar., 100mA, 10kA, F-type
Dig. aardlekaut. (RCBO) FRBdM, 1P+N, 25A, C-kar., 100mA, 10kA, F-type
STOCK
IN STOCK
0
piece
Product description
Hoogwaardige aardlekautomaten (RCBO), netspanning afhankelijk, standaanduiding rood - groen, klemmen achteraansluiting afscherming, tristabiele vergrendelingsschuif - maakt het verwijderen mogelijk vanuit een bestaand railsysteem, uitgebreide reeks accessoires kan achteraf worden gemonteerd, grote keuze aan nominale foutstromen, nominale bedrijfsstromen tot en met 25 A, afschakelkarakteristieken B, C, D, nominaal uitschakelvermogen 10 kA, geschikt voor gebruik buitenshuis (bouwstroom en buitenverdeelkast) tot en met -25 °C
Product specifications
Number of poles (total)
2
Number of protected poles
1
Rated voltage
240 V
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
4 kV
Rated current
25 A
Rated fault current
0.1 A
Leakage current type
F
Current limiting class
3
Rated short-circuit breaking capacity according to EN 61009
10 kA
Rated short-circuit breaking capacity according to IEC 60947-2
0 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
10 kA
Disconnection characteristic
Short-time delayed
Surge current capacity
3 kA
Voltage type
AC
Frequency
50 Hz
Release characteristic
C
Concurrently switching neutral conductor
No
With interlocking device
No
Overvoltage category
3
Pollution degree
2
Ambient temperature during operating
-25 - 40 °C
Width in number of modular spacings
2
Built-in depth
70 mm
Anti-nuisance tripping version
No
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 - 25 mm²
Connectable conductor cross section multi-wired
1 - 25 mm²
Power loss
4.5 W
Mounting method
DIN rail
