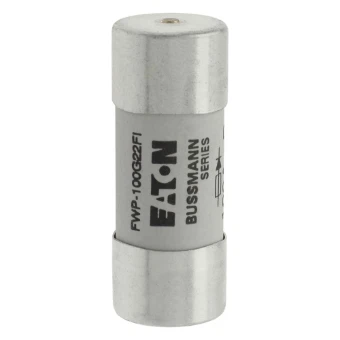

Zekering, hoge snelheid, 100 A, AC 690 V, 200 kA,
Add to selection
General information
Ordercode YESSS
3018-4041
Product code
FWP-100G22FI
EAN code
05027590500098
Product group
Cylindrical fuse
Brand
Eaton
Serie
Bussmann High Speed Round body
Type
Fuse 100A 690VAC gR 22x58 with Ind
Zekering, hoge snelheid, 100 A, AC 690 V, 200 kA,
Zekering, hoge snelheid, 100 A, AC 690 V, 200 kA, 22 x 58 mm, gR, IEC,
STOCK
IN STOCK
0
piece
Product description
Zekering, Zekeringelement, snel, 100 A, AC 690 V, 22 x 58, gR, IEC, UL, met slagpin, cilindrisch, IEC 60269-4, UL 248-13, Uitschakelvermogen 200 kA
Product specifications
Size
22x58 mm
Voltage type
AC
Utilization category according to IEC 60269
gR
Release characteristic
Other
Model
Ceramic fuse
Rated current
100 A
Type of fuse status indicator
Top fuse status indicator
Power loss at rated current
17.7 W
Rated voltage AC
690 V
Rated operating frequency
45 - 62 Hz
Breaking capacity at nominal voltage, AC
200 kA
Breaking capacity at nominal voltage, DC
50 kA
