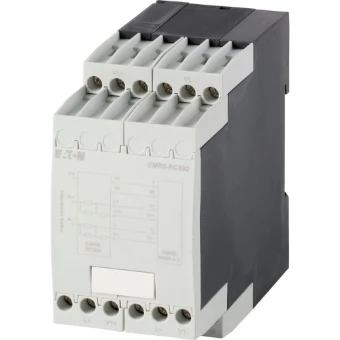

Insulation and earth fault monitoring relay Eaton
Add to selection
General information
Ordercode YESSS
3017-9630
Product code
184775
EAN code
04015081788118
Product group
Insulation and earth fault monitoring relay
Brand
Eaton
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Function
For mixed system
Line capacity
20 µF
Response value impedance 1
1 - 100 kOhm
Response value impedance 2
1 - 200 kOhm
Indication of insulation value
No
Error registration possible
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Width
45 mm
Height
78 mm
Depth
100 mm
External power supply required
No
Voltage type (supply voltage)
AC/DC
Supply voltage AC 50 Hz
0 - 690 V
Supply voltage AC 60 Hz
0 - 690 V
Supply voltage DC
0 - 1000 V
Voltage measuring range
0 - 1000 V
Rated operating frequency
15 - 60 Hz
Voltage type (operating voltage)
AC/DC
Operating voltage AC 50 Hz
0 - 690 V
Operating voltage AC 60 Hz
0 - 690 V
Operating voltage DC
0 - 1000 V
