Isolatie, kabelbreuk, 1 - 100 kΩ
Add to selection
General information
Ordercode YESSS
3017-9627
Product code
184772
EAN code
04015081788088
Product group
Insulation and earth fault monitoring relay
Brand
Eaton
Serie
EMR
Type

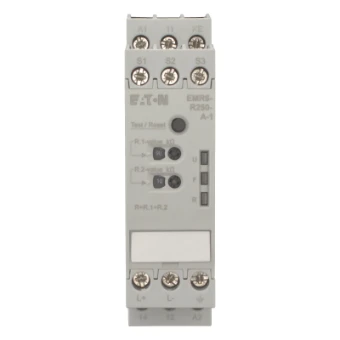

EMR6-R250-A-1
Isolatie, kabelbreuk, 1 - 100 kΩ
Isolatie, kabelbreuk, 1 - 100 kΩ
STOCK
IN STOCK
0
piece
Product description
Isolatiebewakingsrelais, Productassortiment: EMR meet- en bewakingsrelais, Statusindicatie via LED's, Arbeidsstroom principe, Test of reset met knop op apparaat of met stuuringang, Configureerbare fout geheugen/geheugenfunctie, configureerbqar non-volatile fault memory, Bewaking van: Isolatieweerstand in niet-geaarde AC toevoersystemen (tweefasige, driefasige, vierfasige systemen), Isolatieweerstand in niet-geaarde DC-voedingssystemen (tweefasige, driefasige systemen), aanpasbaar gevoeligheidsbereik: 1 - 100 kΩ, Voedingsspanning: 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Function
For mixed system
Line capacity
10 µF
Response value impedance 1
1 - 100 kOhm
Response value impedance 2
0 - 0 kOhm
Indication of insulation value
No
Error registration possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Width
22.5 mm
Height
85.6 mm
Depth
103.7 mm
External power supply required
No
Voltage type (supply voltage)
AC/DC
Supply voltage AC 50 Hz
0 - 250 V
Supply voltage AC 60 Hz
0 - 250 V
Supply voltage DC
0 - 300 V
Voltage measuring range
0 - 300 V
Rated operating frequency
15 - 60 Hz
Voltage type (operating voltage)
AC/DC
Operating voltage AC 50 Hz
0 - 250 V
Operating voltage AC 60 Hz
0 - 250 V
Operating voltage DC
0 - 300 V
Rated switch current
4 A
