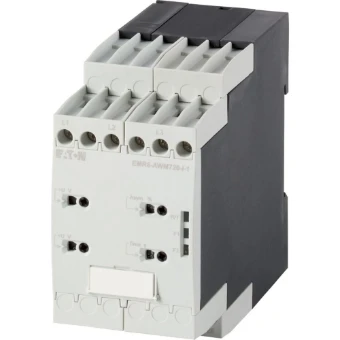

Phase monitoring relay Eaton
Add to selection
General information
Ordercode YESSS
3017-9621
Product code
184766
EAN code
04015081788026
Product group
Phase monitoring relay
Brand
Eaton
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Phase sequence monitoring
Yes
Phase failure detection
Yes
Function under voltage detection
Yes
Function overvoltage detection
Yes
Phase imbalance monitoring
Yes
Voltage measuring range
450 - 720 V
Min. adjustable delay-on energization time
0.1 s
Max. permitted delay-on energization time
30 s
Min. adjustable off-delay time
0.1 s
Max. permitted off-delay time
30 s
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Width
45 mm
Height
85.6 mm
Depth
107 mm
External power supply required
No
Voltage type (supply voltage)
AC
Supply voltage AC 50 Hz
450 - 720 V
Supply voltage AC 60 Hz
450 - 720 V
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
450 - 720 V
Operating voltage AC 60 Hz
450 - 720 V
Rated switch current
4 A
