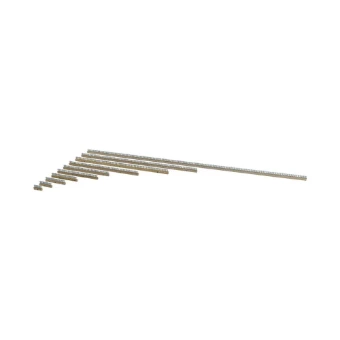

Main line branch terminal Eaton
Add to selection
General information
Ordercode YESSS
0289-1353
Product code
275450
EAN code
04015082754501
Product group
Main line branch terminal
Brand
Eaton
Product specifications
Number of poles
1
Nominal current
63 A
Connection type
Screwing
Mounting method
Screw
Contact safe
No
Height
10 mm
Width
330 mm
Depth
8 mm
Number of inputs
2
Number of outputs
43
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
No
Suitable for extra fine-strand conductors
No
Suitable for extra fine-strand conductors without cable end sleeve
No
Conductor cross section, input
1.5 - 25 mm²
Conductor cross section, output
1.5 - 16 mm²
Conductor cross section, input AWG
0 - 0
Conductor cross section, output AWG
0 - 0
