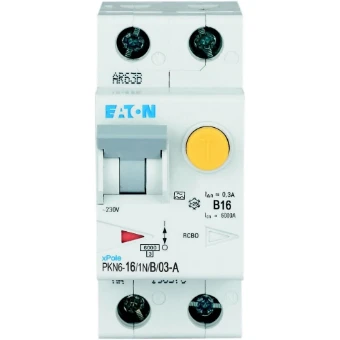

Aardlekautomaat (RCBO) PKN6 B-kar., 16A, 300mA, 2P incl. N, 6
Add to selection
General information
Ordercode YESSS
0041-5750
Product code
236635
EAN code
04015082366353
Product group
Earth leakage circuit breaker
Brand
Eaton
Serie
xPole
Type
PKN6-16/1N/B/03-A-MW
Aardlekautomaat (RCBO) PKN6 B-kar., 16A, 300mA, 2P incl. N, 6
Aardlekautomaat (RCBO) PKN6 B-kar., 16A, 300mA, 2P incl. N, 6 kA, type
STOCK
IN STOCK
41
piece
Product description
Hoogwaardige aardlekautomaat (RCBO), netspanning onafhankelijk, standaanduiding rood - groen, klem achterinsteek afscherming, Driestanden borgclip - maakt het verwijderen mogelijk vanuit een bestaand railsysteem, uitgebreide reeks accessoires kan achteraf worden gemonteerd, grote keuze aan nominale foutstromen, nominale bedrijfsstromen tot en met 40 A, afschakelkarakteristieken B, C, D, nominaal uitschakelvermogen 10 kA, geschikt voor gebruik buitenshuis (bouwstroom en buitenverdeelkast) tot en met -25 °C
Product specifications
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Rated current
16 A
Rated fault current
0.3 A
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 61009
6 kA
Rated short-circuit breaking capacity according to IEC 60947-2
0 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
6 kA
Disconnection characteristic
Undelayed
Surge current capacity
0.25 kA
Voltage type
AC
Frequency
50 Hz
Release characteristic
B
Concurrently switching neutral conductor
Yes
With interlocking device
No
Overvoltage category
3
Pollution degree
2
Ambient temperature during operating
-25 - 40 °C
Width in number of modular spacings
2
Built-in depth
69.5 mm
Anti-nuisance tripping version
No
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 - 25 mm²
Connectable conductor cross section multi-wired
1 - 25 mm²
Mounting method
DIN rail
