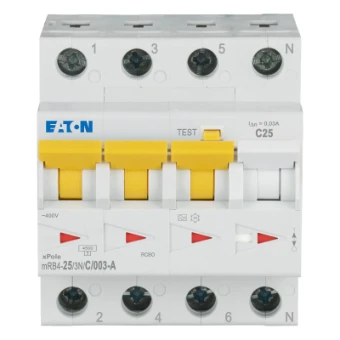

Aardlekautomaat (RCBO) mRB4, C-kar., 25A, 30mA, 4P incl. N, 4.5
Add to selection
General information
Ordercode YESSS
0805-8817
Product code
120678
EAN code
04015081185085
Product group
Earth leakage circuit breaker
Brand
Eaton
Serie
xPole
Type
mRB4-25/3N/C/003-A
Aardlekautomaat (RCBO) mRB4, C-kar., 25A, 30mA, 4P incl. N, 4.5
Aardlekautomaat (RCBO) mRB4, C-kar., 25A, 30mA, 4P incl. N, 4.5 kA
STOCK
IN STOCK
7
piece
Product description
RCD/MCB-combinatieschakelaar, mRB4, 3-polig + N, nominale stroom In: 25 A, nominale foutstroom: 0,03 A, nominaal schakelvermogen volgens IEC/EN 60947-2: 4,5 kA, nominaal schakelvermogen volgens IEC/EN 61009: 4,5 kA, schakelmateriaal voor residentiële en commerciële toepassingen
Product specifications
Number of poles (total)
4
Number of protected poles
4
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Rated current
25 A
Rated fault current
0.03 A
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 61009
4.5 kA
Rated short-circuit breaking capacity according to IEC 60947-2
4.5 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
4.5 kA
Disconnection characteristic
Undelayed
Surge current capacity
0.25 kA
Voltage type
AC
Frequency
50 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
With interlocking device
No
Overvoltage category
3
Pollution degree
2
Ambient temperature during operating
-25 - 40 °C
Width in number of modular spacings
4
Built-in depth
70 mm
Anti-nuisance tripping version
No
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 - 25 mm²
Connectable conductor cross section multi-wired
1 - 25 mm²
Mounting method
DIN rail
