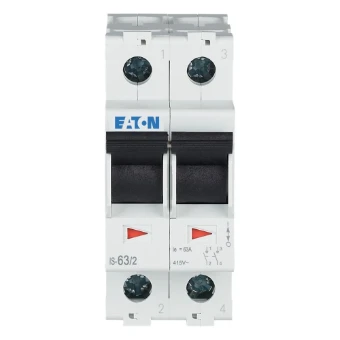

Hoofdschakelaar IS-63/2 - 63A - 2 Polig - Breedte 2TE
Add to selection
General information
Ordercode YESSS
0041-7022
Product code
276275
EAN code
04015082762759
Product group
Main switch for distribution board
Brand
Eaton
Serie
xPole
Type
IS-63/2
Hoofdschakelaar IS-63/2 - 63A - 2 Polig - Breedte 2TE
Hoofdschakelaar IS-63/2 - 63A - 2 Polig - Breedte 2TE
STOCK
IN STOCK
0
piece
Product description
Schakelaar met scheidingsfunctie, type volgens IEC/EN 60947-3, contact met hoge slijtvastheid, jump activering, draaigreep kleur zwart, klemdoorsnede 50mm², rail compatibel met Xpole beveiligingsschakelapparaten bij gebruik van de bekklem in combinatie met standaard vorkrails
Product specifications
Switching function
Other
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
2
Number of contacts as change-over contact
0
Number of poles
2
Rated current
63 A
Rated voltage
415 V
Min. rated voltage
240 V
Rated switching capacity
12.5 kA
Short-circuit breaking capacity (Icw)
1 kA
Voltage type
AC
With signal lamp
No
Colour calotte
Other
Lamp type
Other
Lamp socket
Other
Max. lamp power
0 W
Width in number of modular spacings
2
Built-in depth
69.5 mm
Degree of protection (IP)
IP40
Imprint/indication
Symbol "arrows"
Forced segregation according to DIN VDE 0113
No
