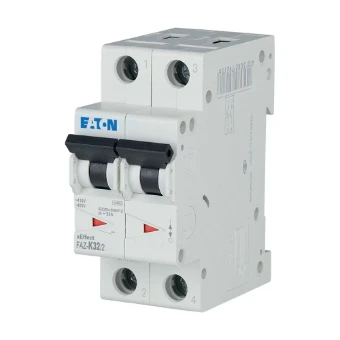

Installatie-automaat (MCB) FAZ, 2P, 32A, K-curve, 10kA
Add to selection
General information
Ordercode YESSS
0041-2132
Product code
278801
EAN code
04015082788018
Product group
Miniature circuit breaker (MCB)
Brand
Eaton
Serie
xEffect
Type
FAZ-K32/2
Installatie-automaat (MCB) FAZ, 2P, 32A, K-curve, 10kA
Installatie-automaat (MCB) FAZ, 2P, 32A, K-curve, 10kA
STOCK
IN STOCK
0
piece
Product description
Installatieautomaat (MCB), FAZ, 2-polig, afschakelkarakteristiek: K, nominale stroom In: 32 A, Schakelapparatuur industriële en geavanceerde commerciële toepassingen
Product specifications
Release characteristic
K
Number of poles (total)
2
Number of protected poles
2
Rated current
32 A
Rated voltage
400 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10 kA
Voltage type
AC
Frequency
50 - 60 Hz
Current limiting class
3
Concurrently switching neutral conductor
No
Overvoltage category
3
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
2
Built-in depth
70.5 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 75 °C
Connectable conductor cross section multi-wired
1 - 25 mm²
Connectable conductor cross section solid-core
1 - 25 mm²
Flush-mounted installation
No
Explosion-proof
No
Power loss
6.2 W
