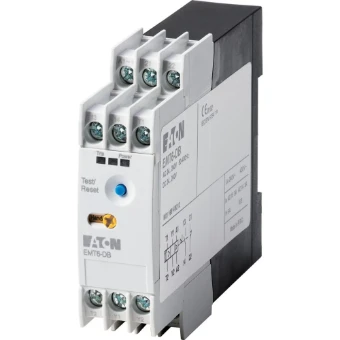

Temperature monitoring relay Eaton
Add to selection
General information
Ordercode YESSS
0043-3246
Product code
066167
EAN code
04015080661672
Product group
Temperature monitoring relay
Brand
Eaton
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Number of measuring circuits
1
Error registration possible
No
External reset possible
Yes
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Temperature measuring range
0 - 0 °C
Resistance measuring range
750 - 12000 Ohm
Width
23 mm
Height
83 mm
Depth
103 mm
Voltage type (supply voltage)
AC/DC
Supply voltage AC 50 Hz
24 - 240 V
Supply voltage AC 60 Hz
24 - 240 V
Supply voltage DC
24 - 240 V
Connection type auxiliary circuit
Screw connection
Voltage type (operating voltage)
AC/DC
Operating voltage AC 50 Hz
24 - 240 V
Operating voltage AC 60 Hz
24 - 240 V
Operating voltage DC
24 - 240 V
Rated switch current
6 A
Product information
