Beacon XL MUSE 4K CAS LS3 wit

Add to selection
General information
Ordercode YESSS
3016-6915
Product code
2059329
EAN code
05025768593293
Product group
Downlight/spot/floodlight
Brand
Concord
Serie
Beacon LED XL Muse
Type
XL MUSE 4K SSC01 L3 WHT
Beacon XL MUSE 4K CAS LS3 wit Beacon XL MUSE 4K CAS LS3 wit
STOCK
IN STOCK
0 piece
Product description

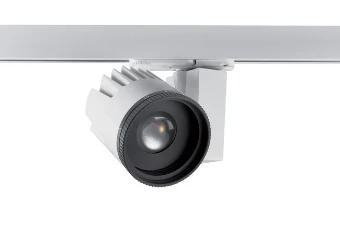

2059329 BEACON XL MUSE 4K SSC01 L3 WHT Integrated LED spotlight, white RAL 9016, unique soft-touch ring, adjustable beam angle from a 10° spot to a 70° flood, compact and minimalist design, ideal for museum, gallery and high-end retail applications, die-cast aluminium body, passive cooling heatsink, beam angle: 10° spot to 70° flood, optics: aspheric glass lens, colour temperature: 4000K neutral white, total system power: 41W, total fixture output: 2884lm, luminaire efficacy: 70lm/W, LOR: 100%, super high colour rendering: Ra 97 typical, R9 value at 90, LED Chromacity: 3 step MacAdam ellipse, IR/UV free light source without heat radiation, operating voltage: 220-240V / 50-60Hz, drive current: 1050mA, electronic driver, SylSmart SSC, power factor: 0.95, electrical protection: CLASS I, 3-circuit track adaptor, suitable for Concord Lytespan 3 track, ingress protection rating: IP20, suitable for internal environment...

Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
With movement sensor
No
With light sensor
No
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Housing colour
White
Surface brushed
No
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
Electronic ballast
With control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
Yes
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
None
Beam angle
5-10° - Extreme narrow beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
100000 h
Impact strength
Other
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
0 - 0 °C
Suitable for lamp power
0 - 0 W
Max. system power
43 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
90-100
Power factor
0.95
Height/depth
0 mm
Outer diameter
115 mm
Conductor cross section
0 mm²
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG0
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
0 %
Constant light output (CLO)
No
Colour of light adjustable
No
Beam angle adjustable
No
Built-in diameter
0 - 0 mm
Max. number of luminaires per miniature circuit breaker B16 (MCB)
50
Max. number of luminaires per miniature circuit breaker C16 (MCB)
85
Unified Glare Ratio (UGR)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Nominal current
188.6 - 205.7 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Operation by Bluetooth
No
Compatible with Casambi
Yes
Dimmable
Yes
Containing product according to 2019/2020/EU
Yes
Rated luminous flux according to IEC 62722-2- 1
2884 - 2884 lm
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
Other
Emergency function monitoring system
None
Luminous flux in emergency mode
0 lm
Luminaire efficacy
67 - 67 lm/W
more specifications
