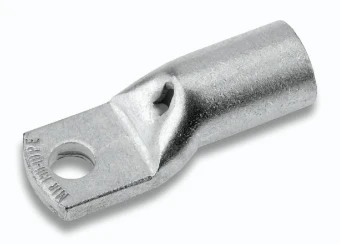

Buiskabelschoen Cu, 240mm² M20
Add to selection
General information
Ordercode YESSS
1457-2534
Product code
180804
EAN code
04021103808047
Product group
Tubular cable lug for copper conductors
Brand
Cimco
Buiskabelschoen Cu, 240mm² M20
Buiskabelschoen Cu, 240mm² M20
STOCK
IN STOCK
0
piece
Product description
Buiskabelschoen, normale uitvoering, ringvormig, tot 6 mm2 met kijkgat, van galvanisch vertinde buis van E-Cu, geleiderdiameter/aansluitbout 240 mm2/20 mm
Product specifications
Bolt dimension (metric)
20
Connecting angle
180° (horizontal)
Flange shape
Ring shape
Slender flange model
No
Insulated
No
With sight-hole
No
Material
Copper
Surface protection
Tinned
Number of mounting holes
1
Nominal cross section
240 mm²
AWG size
500 kcmil
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for extra fine-strand conductors
Yes
