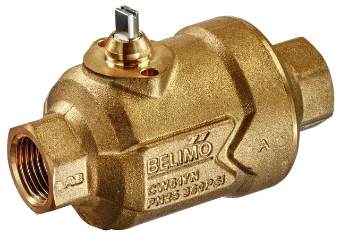

Pressure-compensated control valve Belimo
Add to selection
General information
Ordercode YESSS
3111-6863
Product code
C215QP-B
Product group
Pressure-compensated control valve
Brand
Belimo
Product specifications
Material quality
Dezincification resistant brass (DZR)
Nominal diameter
DN 15
Connections
Internal thread cylindrical BSPP-G (ISO 228-1)
Article compression class
PN 25
Model
Spring/cartridge
Volume flow
0 - 0 m³/h
Volume flow preset
With valve guard
Min. pressure difference
16 kPa
Max. pressure difference
350 kPa
Valve characteristic
Equal percentage
Type of pressure compensation
Mechanical
With measuring nipples
No
With fill- and drain valve
No
Suitable for liquids
Yes
Suitable for glycol
Yes
Length
96 mm
Height
52 mm
Housing material
Brass
