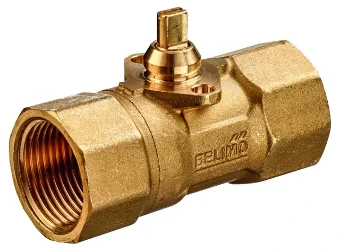

Two way control valve Belimo
Add to selection
General information
Ordercode YESSS
3111-6862
Product code
C215Q-J
Product group
Two way control valve
Brand
Belimo
Product specifications
Material quality
Dezincification resistant brass (DZR)
Nominal diameter connection 1
DN 15
Outer pipe diameter connection 1
21.3 mm
Connection 1
Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
With coupling connection 1
No
Nominal diameter connection 2
DN 15
Outer pipe diameter connection 2
21.3 mm
Connection 2
Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
With coupling connection 2
No
Article compression class
PN 16
Max. pressure difference in opened position
280 bar
Kvs value
4.8
Automatic flow control
No
Kv value
-0.4 - -0.4
With flow measuring point
No
Characteristic curve
Equal percentage
Control ratio (Svo)
50 %
Length of connection 1
29 mm
Working length connection 1
16 mm
Length of connection 2
29 mm
Working length connection 2
16 mm
Product information
