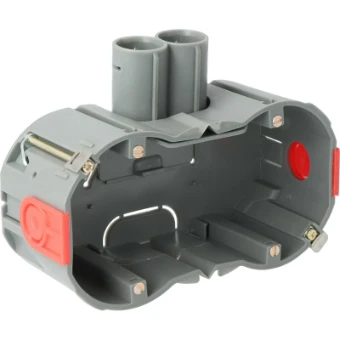

Box/housing for built-in mounting in the wall/ceiling ATTEMA
Add to selection
General information
Ordercode YESSS
2222-6794
Product code
AT1066
EAN code
08712259312859
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
ATTEMA
Product specifications
Mounting method
Hollow wall
Shape
Round
Construction type
Device connection box (round/square)
Model
Double
Provided with revolving ring
No
Couplable
Yes
Diameter
76 mm
Length
144 mm
Width
76 mm
Inner depth
50 mm
For number of device inserts
2
Mounting switching equipment
Screwing
With screws
Yes
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
16/19 mm
Pipe locking
Yes
Pipe locking optional
No
Inlet from the rear
No
Number of inlets
2
Number of included spouts
0
Material
Plastic
Halogen free
No
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP20
Cover model
None
Transparent cover
No
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
6 mm²
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
Double nozzle
Special application
None
