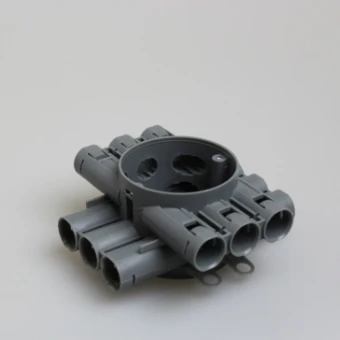

Box/housing for built-in mounting in the wall/ceiling ATTEMA
Add to selection
General information
Ordercode YESSS
2222-6698
Product code
AT1004
EAN code
08712259324784
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
ATTEMA
Product specifications
Mounting method
Hollow ceiling
Shape
Round
Construction type
Central conduit box
Model
Single
Provided with revolving ring
No
Couplable
No
Equipped with
None
Diameter
76 mm
Inner depth
62 mm
For number of device inserts
0
With screws
No
Housing feed-through by break-out opening
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
16/19 mm
Suitable for cable diameter
8000 - 12000 mm
Pipe locking
Yes
Pipe locking optional
No
Inlet from the rear
No
Number of inlets
12
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP20
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
6 mm²
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
Tunnel branch pipe
Special application
None
